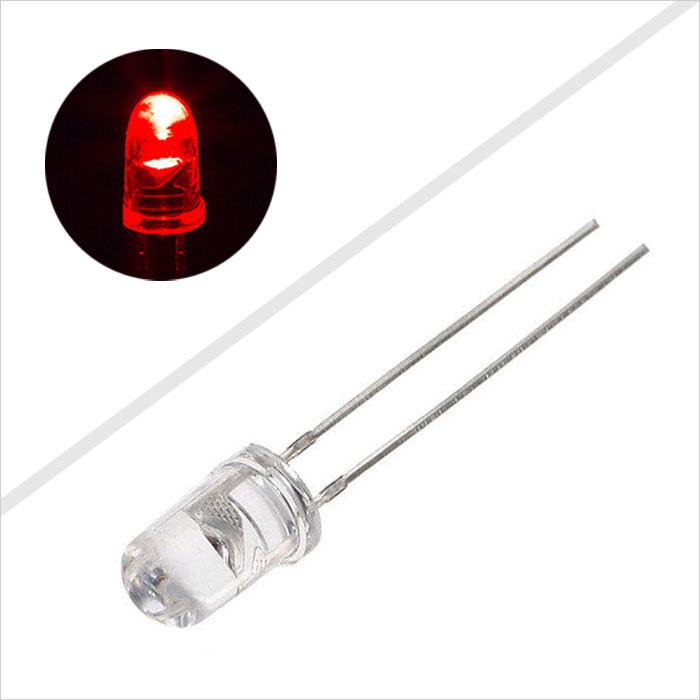

Red 5mm Component LED. Features 630nm wavelength, 8,000mcd, and 30 degree viewing angle. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Dimensional Drawings

TECHNICAL DETAILS
Continuous Forward Current:    20 mA
Forward Voltage:    2.2V
LED Color:    Red
LED Package:    5 mm (T-1 3/4)
Lens:    Clear
Lumen:    2 Lumen
Maximum Forward Voltage:    2.6V
Millicandela:    8000mcd
Operating Temperature:    -40~+85 °C (-40~+185 °F)
Peak Forward Current:    50mA
Power Dissipation:    80mW
Reverse Current:    10µA
Reverse Voltage:    5V
Storage Temperature:    -40~+85 °C
Total Power Consumption:    0.04 Watts
Tube Diameter:    T1-3/4
Viewing Angle:    30 degree
Wavelength:    630 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)

Applications / Uses
Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.
