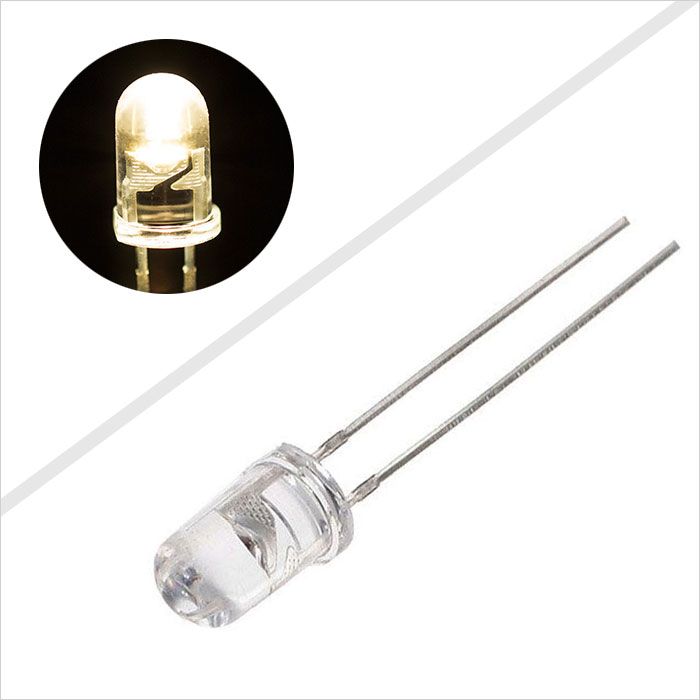

5mm through hole component LED in warm white. Features 7,000 millicandela, 3100K color temperature, and a 35 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Dimensional Drawings

TECHNICAL DETAILS
Color Temperature:    3100 K
Continuous Forward Current:    30 mA
Forward Voltage:    3.2V
LED Color:    Warm 3100K
LED Package:    5 mm (T-1 3/4)
Lens:    Clear
Lumen:    2 Lumen
Maximum Forward Voltage:    3.4V
Millicandela:    7000mcd
Operating Temperature:    -20~+80 °C (-4~+176 °F)
Peak Forward Current:    100mA
Power Dissipation:    120mW
Reverse Current:    10µA
Reverse Voltage:    5V
Storage Temperature:    -30~+100 °C
Total Power Consumption:    0.096 Watts
Tube Diameter:    T1-3/4
Viewing Angle:    35 degree
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)

Applications / Uses
Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.
