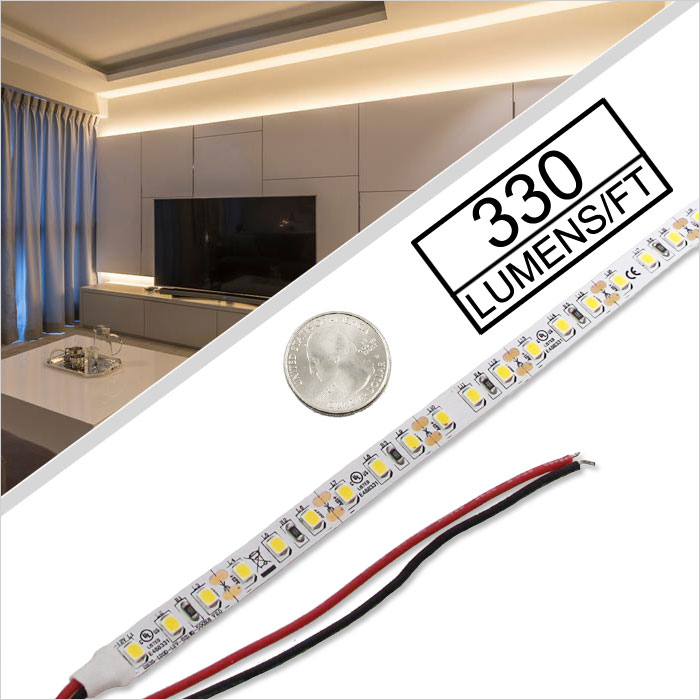

2835 White LED Strip Light/Tape Light - High CRI - 12V/24V - IP20 - 5m
Featuring a 90+ CRI rating, this flexible LED strip light ensures high-quality, precise color rendering. It emits natural illumination with an elegant finish, perfect for updating and enhancing any indoor space. Peel-and-stick 3M™ adhesive backing enables fast, easy mounting. Backed by a lifetime warranty.
Features:
- 94+ CRI rating ensures vibrant, natural-looking color tones
- Choose 18 or 36 LEDs/ft
- 12V input for operation with a vehicle; 24V for longer runs
- Run 12V strips up to 10m; run 24V strips up to 15m
- Strip width measures 8mm
- Lifetime exceeds 50000 hours
- CE certified and UL listed
- Lifetime warranty
High CRI 90 Series
CRI (color rendering index) is a measurement of how accurately a light source illuminates objects' true colors. Our LED lights have CRI95+, indicating that our LED strips are able to produce white light that approximates halogen or incandescent lighting and natural daylight.
Available Colors CCTs
Warranties & Certifications
Should you select 12 Volt (12v) or 24 Volt (24v)?
Depends on your application. The main difference between the two is the fact that the 24v strips can be ran for longer distances than the 12v strips can due to Voltage Drop. Voltage drop is the gradual decrease in voltage along a circuit. If your project requires a very long run of LEDs, we would recommend the 24v strips. However, there are also many projects that 12v is required (automotive or marine applications). Please feel free to live chat with us, or email us with questions.
Before noticing any unwanted color variations or dimming at the end of your run of lights, it is recommended that you run no more than 32' in series when using 12v or 48' in series when using 24v.
Application & Use
SmartBrightLEDs White Series LED strip lights are installed in a wide variety of applications including:
TV backlighting, Linear lighting, Cove lighting, Display / jewelry case lighting, Bar and restaurant accent lighting, Above cabinet lighting, Under counter lighting, Hotel lobbies, Cove lighting
TECHNICAL DETAILS
LED Beam Angle | 120° |
Color Temperature | Cool 6500K, Cool 5000K, Natural 4000K, Warm 3500K, Warm 3000K, Warm 2700K |
LED Type | 2835 SMD |
Connection Type | Pigtail |
CRI | 94+ |
Strip Width | 8mm (0.31in) |
Wattage per Foot | 3.6~4.2 W/ft (13.8 W/m) |
Max Lumen per Foot | 330 lm |
Max Run | 16.4~Up to 49.2 (15m) |
Special Features | High CRI |
Rated Lifespan | 50,000 hours |
Length | 16.4ft (5m) |
Dimmable | Yes (requires controller) |
DMX Compatible | Yes |
IP Rating | Non-Weatherproof |
Wire Length | 508mm (20in) |
Operating Temperature | -20~+45 °C (-4~+113 °F) |
Standards And Certifications | CE, RoHS Compliant, UL Listed |
**All specifications are subject to change without notice.
Incorrect Use:
Packaing Diagram
Use of environmental conditions
1). LED strips installation must be operated by professionals.
2). For avoiding LED get vulcanized, LED strip should be installed in the environment where does not has oil and corrosive substances. Such as these substances which contain Sulphur、Bromine、Iodine and Chlorine. Some other chemical elements which will cause Aromatic hydrocarbons releasing(such as: methylbenzene、xylene、methyl acetoacetate Ethyl acetate etc.).The environment in which includes strong acid and strong base.
3). For cutting LED strip operation, it is necessary to use the standard accessories provided by smartbrightLEDs (e.g. DC wire, end-cap, front-cap, adhesive, etc.), and according to the correct cutting and connecting method for the installation.
4). LED strip cannot be installed in some areas where water hazard might be formed, such as the surface of pits and ditches. And similar places in which rain and water may be accumulated easily.
5). Please do not strongly pull、crash the LED strips during installation process. And avoid squeezing and scratching LED strips with sharp objects.
6). During the warranty period, only defective products are acceptable to be replaced by the factory. Factory is not responsible for other expenses because of replacement,such as transportation fee, installation fee, etc.
Cautions 1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED. 2. For better lighting effect of the product, each 5 meters strip must connect the main power source. 3. Must guarantee that each power source (GND) must be connected. 4. Should not be curving in the diameter 60mm following radian, please do not rebate, in order to avoid damage lamp bead or break. 5. Please follow the user manual for installation. 6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety. 7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED. 8. Installs as far as possible the product in the appropriate environment. 9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage. |
** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
