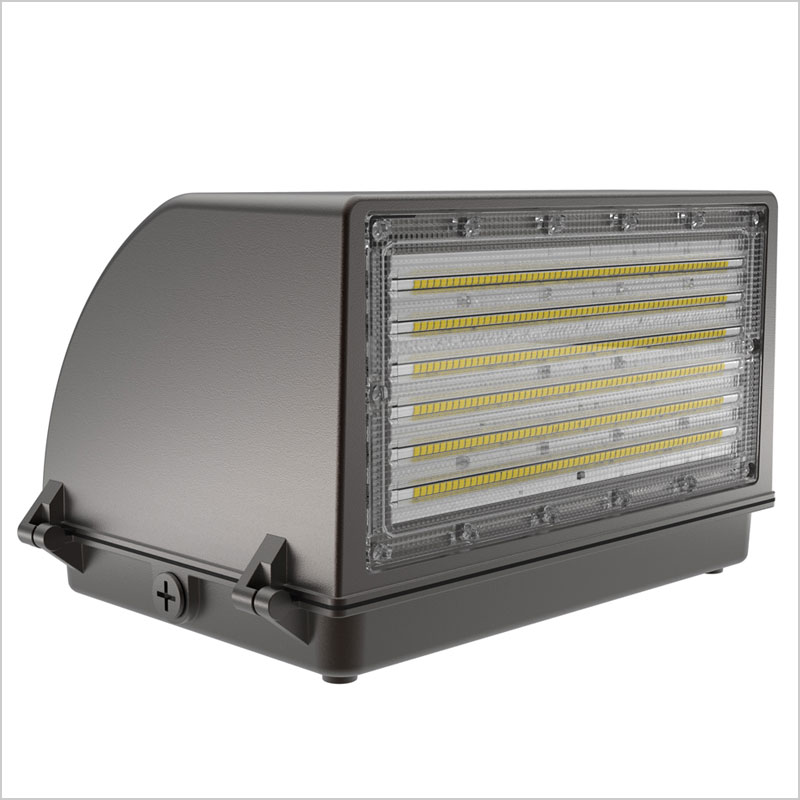

Replace traditional wall packs with less energy usage and more directional light output. WP03 series 120W fixture has full cutoff design and precision molded polycarbonate lens, casting illumination over a wide outdoor space with zero uplight. The aluminum housing is die cast and powder coated, making the rugged exterior corrosion resistant. Side-hinged door accommodates versatile mounting options, as well as easy installation of optional photocell. At 130 lumens per watt, this fixture is commercial utility rebate eligible, further increasing savings potential. Apply it to open warehouses, storage facilities, or perimeters for improved security and efficiency.

Product Details:
Conduit entry points allow direct wall or junction box mounting
Compatible with photocell for dusk to dawn operation - sold separately
Super bright LM80 LED2835SMD, Ra>80
Lumen output : 125-130lm/W
AC100-240V or 120-277V,
High Quality PMMA Lens
50000 hours L70 lifespan
IP65 rated for wet conditions
UL Listed
5 year warranty

Applications
Warehouses,Parking Lots,Security Lighting,Commercial Entryways,Commercial Complexes,Parking Garages,Industrial Facilities,Gas Stations,Commercial Lighting

Specifications
Ambient Operating Temperature:    -20~+40 °C (-4~+104 °F)
Beam Angle:    90 x 100 degree
Certifications/Compliance:    DLC Premium, RoHS Compliant, UL Listed
Current Draw:    0.33A (330mA)
Dimmable:    Yes
Dimming:    1-10V
Environmental Rating:     Weatherproof IP65
Equivalency:    400 Watt Metal-Halide
Finish:    Bronze, Grey
Intensity:    15600 Lumen
Lens Type:    Polycarbonate
Material:    Aluminum Housing
Operating Voltage:    120~277 VAC
Output Connection Type:    Pigtail
Photocell:    Without Photocell
Rated Life (L70):    50000 Hours
Wattage:    120 Watts
Package Dimensions: 14" (36cm) x 10" (25cm) x 7" (18cm)
All specifications are subject to change without notice.
