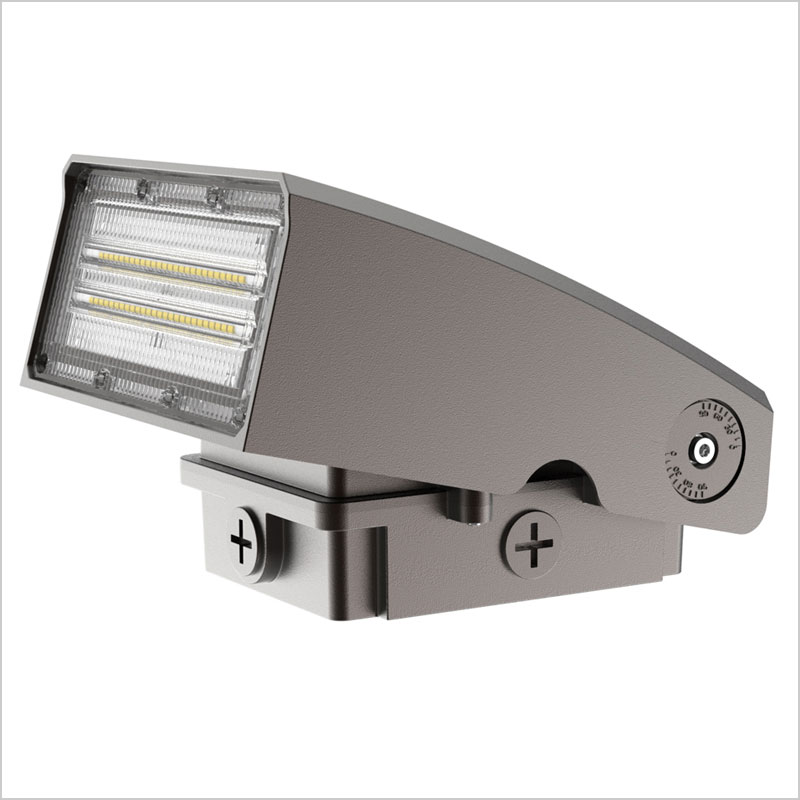

Lasting far longer than metal halide equivalents with better architectural design and directional output, WP02 series 40W Wall Pack is a compact lighting solution. Versatile angle positioning and full cutoff form distributes beams precisely, without waste. This slim LED fixture can be aimed after installation-- closer for perimeter visibility, or directly forward for a flood light application. With powder coating and integrated heat sinks, aluminum housing will run cool through all weather conditions. Hinged door and conduit entry allows easy mounting, and DLC Premium quality certifies this light for utility rebate savings.
For campuses, schools, or business parks that have a variety of lighting needs, see the rest of the WPA series to tailor illumination to each unique space while maintaining a consistent look throughout. The complete line has positioning versatility and a lumen range of 1,500 to 15,000 to fit both small stairways and large lots, to accentuate features or improve safety.

Product Details:
Conduit entry points allow direct wall or junction box mounting
Compatible with photocell for dusk to dawn operation - sold separately
Super bright LM80 LED2835SMD, Ra>80
AC100-240V or 120-277V,
50000 hours L70 lifespan
High Quality PMMA Lens
IP65 rated for wet conditions
DLC Premium, UL Listed
5 year warranty

Applications
Warehouses,Parking Lots,Security Lighting,Commercial Entryways,Commercial Complexes,Parking Garages,Industrial Facilities,Gas Stations,Commercial Lighting

Specifications
Ambient Operating Temperature:    -40~+50 °C (-40~+122 °F)
Beam Angle:    100 x 75 degree
CRI:     80+
Certifications/Compliance:    DLC Premium, UL Listed
Current Draw:    1.0A (1000mA)
Dimmable:    Yes
Dimming:    0-10V
Efficacy:    130 lm/w
Electrical Connection:    Pigtail
Environmental Rating:     Weatherproof IP65
Equivalency:    175 Watt Metal-Halide
Finish:    Brown
Intensity:    5200 Lumen
Lens Type:    Polycarbonate
Material:    Aluminum Housing, Polycarbonate Lens
Operating Voltage:    120~277 VAC
Photocell:    Without Photocell
Rated Life (L70):    50000 Hours
Wattage:    40 Watts
Package Dimensions: 14.25" (36cm) x 12" (30cm) x 6.25" (16cm)

TECHNICAL DETAILS

**All specifications are subject to change without notice.
