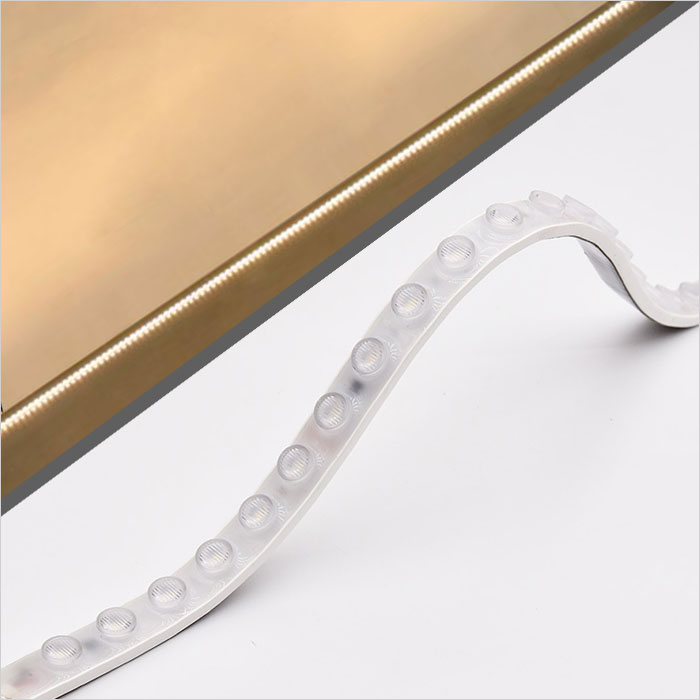

The Smart Bright LEDs Lighting FLS-6WWX-series products are an 24VDC working optical lens type flexible LED wall washer strip light with various beam angles (symmetrical lens: 15°, 30°, 45°, 60° and asymmetrical lens: 20*45°, 15*60°) for different application. Available in white color(2700-6000K) , RGB, RGBW, and RGB DMX512. Not only can be used as IP67 flexible LED strip singly , but also can be mounted into aluminum profile kit with smart accessories used as rigid linear wall washer lighting. IP67 rated, Soft and bendable design makes it ideal for curved surface mounting for the illumination of large surfaces, e.g. buildings or walls in outdoor areas, also suitable for ambient lighting in indoor applications.

Features and Benefits:
▪ Sealed with fully waterproof materials.
▪ Flexible strip design (Soft and bendable) ideal for curved surface mounting.
▪ Symmetrical or asymmetrical loptical lens for options,beam angles available at:
  (1) 2700-6000K: 30°, 45°, 60°, 20*45°;
  (2) RGB, RGBW:15°,30°, 45°,15*60°.
▪ Can be cuttable and re-connected by smart accessories:
  (1)2700-6000K: min cutting length 125mm(6LEDs);
  (2)RGB, RGBW, RGB DMX: min cutting length 166.7mm(6LEDs or 7LEDs);
▪ CRI: Ra>90 (for 2700-6000K only)
▪ LED Quantity: 48 pcs/m (white), 42pcs/m(RGB, RGBW) or 36pcs/m(RGB DMX)
▪ 24VDC working and max 18W/meter(white color).
▪ Up to 120LM/W for 4000K.
▪ Maximum 5meters per continous run length.
▪ Wall washing project Lighting height up to 4meters.
▪ 3M adhesive tape on back.
▪ Optional aluminum profile kit, included: Aluminum profile,angle adjustable brackets.
▪ IP67 rated.
▪ 3 Years warranty.

High CRI 90 Series
CRI (color rendering index) is a measurement of how accurately a light source illuminates objects' true colors. Our LED lights have CRI95+, indicating that our LED strips are able to produce white light that approximates halogen or incandescent lighting and natural daylight.

Available Colors CCTs

Warranties & Certifications

Technical Parameters

Note:
1. CCT(K) (±5%) : 2700K, 3000K, 4000K,6000K.
2. Customized length is available.
3. Specifications and availability are subjected to change without notice.

Dimensional Drawing(units: mm):

Installation Distance/Wall Washing Height
