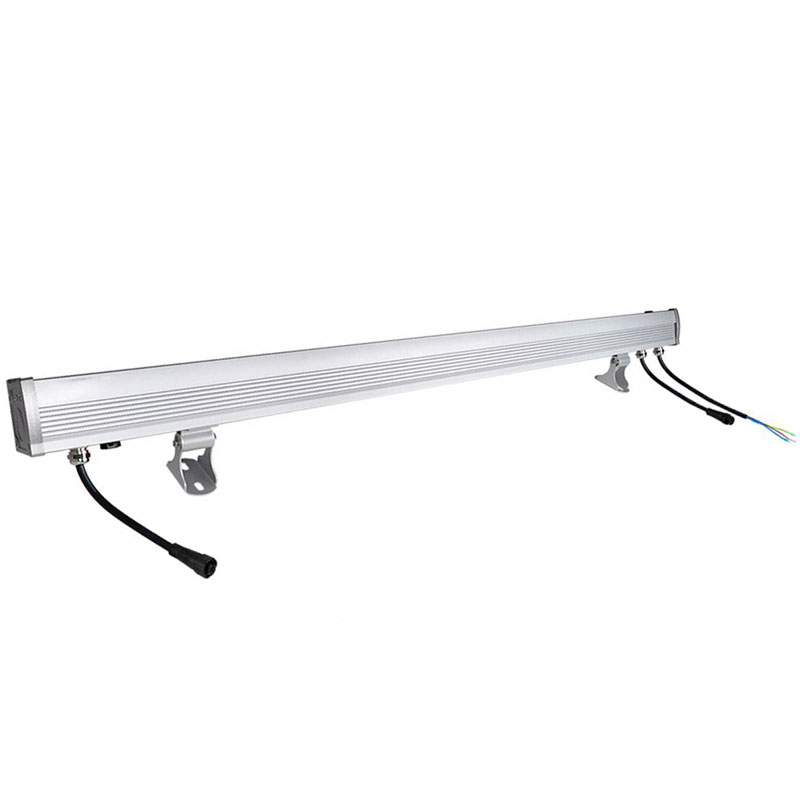

SBL-D4W72 MiBoxer 72W RGBW AC100-240V DMX LED Wall Washer
With numerous professional features this 1m long LED baton uses DMX512 protocols and can be controlled by any DMX512 controller. The baton can be installed individually or linked together with other batons as required either indoors or outdoors.
Each baton emits 72w of light from the RGBW (Red, Green, Blue & Warm White) LED's which when controlled with a DMX desk can produce over 16 million colour combinations ideal for illuminating outdoor buildings and features. These wall washers are ideal for use in marquees or function suites for producing a bright colourful wash to the walls.
The baton can be tilted on the brackets supplied, up to a maximum angle of 180deg enabling the light to be focussed exactly where required. Features incorporated into the baton include RDM (Remote Device Management) which enables the various setting on the baton to be adjusted remotely from the DMX desk (RDM enabled control desk required). Otherwise, the various functions can be set using the three-button user interface and digital display. User-adjustable settings include DMX Address input (000-512), Diming Curve (Linear or logarithmic), smooth or standard dimming adjustment and auto-lock which prevents the setting from being accidentally changed once set by the user.
Each baton has a mains power input cable and a DMX input cable at one end and a DMX out cable at the opposite end of the baton enabling them to be linked together as required.
For product assistance please contact us by telephone, email or via the online chat.
Feature
- RGBW DMX LED Wall Washer
- 72W / AC 100-240V
- Colour temperature 2700K~3000K
- Auto synchronization
- 5 Year Guarantee
Technical Specification
Product Type: Wall Washer
Colour: RGB / Warm White
IP Rating: IP66 Splashproof
Colour Temperature: 2700 - 3000K
Guarantee Period: 5 Years
Wattage: 72w
Input Voltage: 100v - 240v AC
Connectivity: DMX 512 protocols
Size: L1020mm X W64mm X H62mm
Beam Angle: 15x60 degree
CRI Rating (greater than): CRI >80
Dimmable: Yes
Average LED life Hrs: 50,000
Power Factor >: 0.9
Wireless Range: Up to 30 metres
Operating Temp: -20~45°C
Luminous Flux - Red: 560LM
Luminous Flux - Green: 1080LM
Luminous Flux - Blue: 300LM
Luminous Flux - WW: 2600LM
