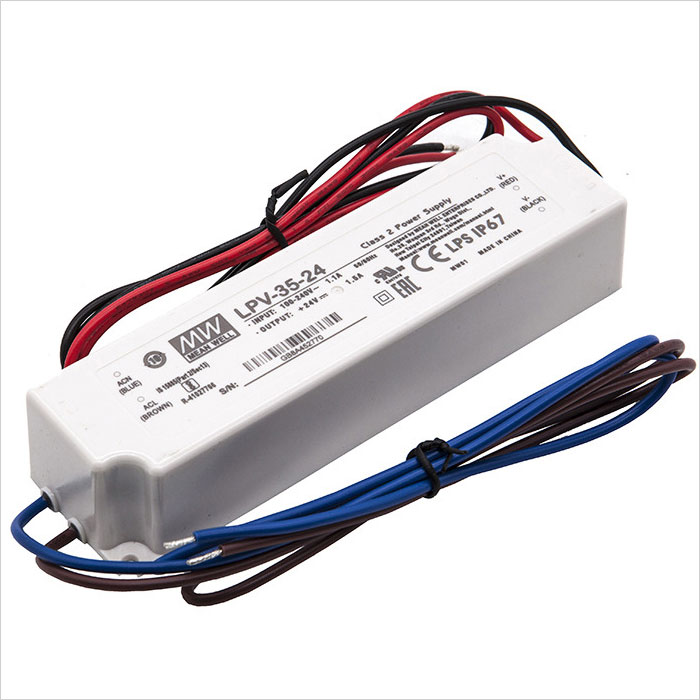

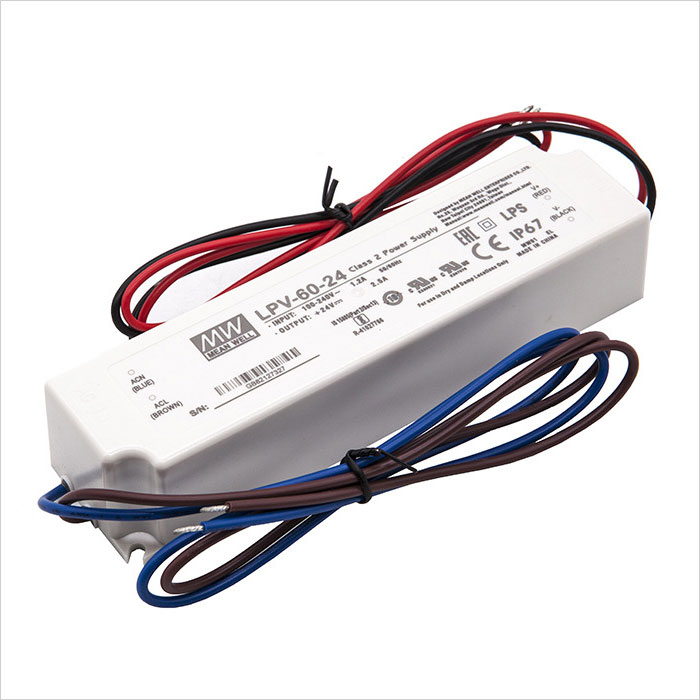

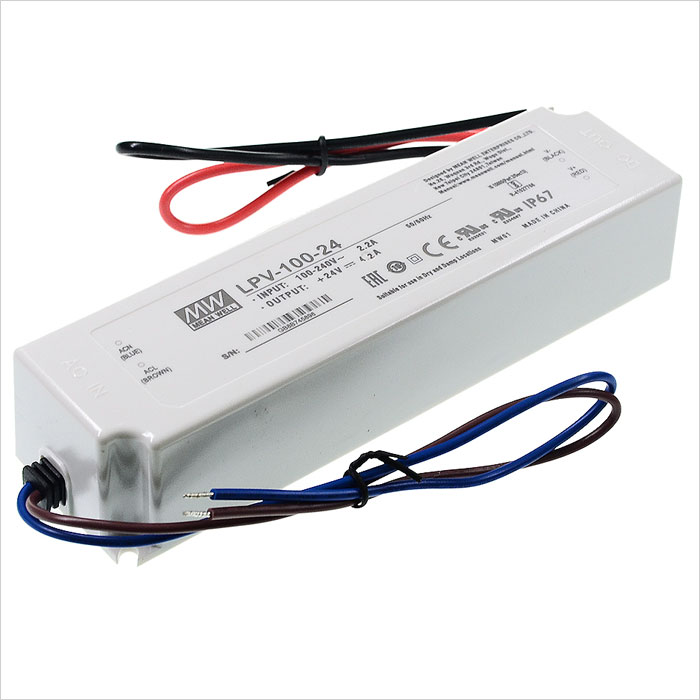

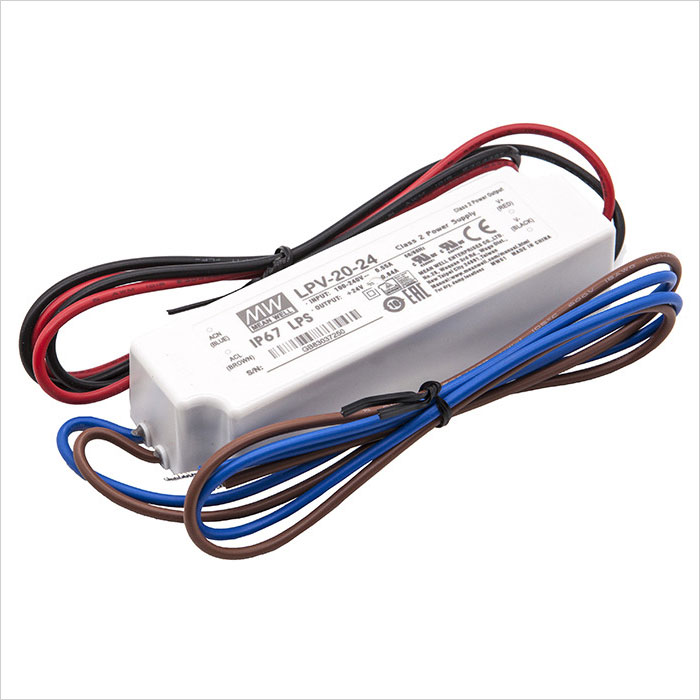

* Low cost, economical LED power supply, constant voltage
* 24 volt output
* Class II power supply - no FG (all wattage versions)
* Class 2 power supply (20-, 35-, and 60-watt versions)
* Protections: short circuit, over load, over voltage
* Universal AC input: 90~264 Vac (180~305VAC for LPV-150)
* IP67 waterproof plastic case
* Withstands 300VAC surge input for 5 seconds (LPV/C-20/35/60/100)
* -30-70℃ wide operation range
* Suitable for economical LED lighting and moving sign applications
* Low cost, high reliability
* 2-year warranty
* Made by Mean Well

Warranties & Certifications

TECHNICAL DETAILS
Dimming Control:  None
Dimmable:  No
Input Connection Type:  Pigtail
Input Frequency Range:    47 ~ 63 Hz
Input Voltage:    90 ~ 264V AC
Input Voltage DC:  127 ~ 370 VDC
IP Rating:  Waterproof IP67
Output Channels:  1
Output Voltage DC:  24 VDC
Output Voltage:  24 VDC
Built-in PFC Function:    No
Power Supply Type:  Waterproof
Volts:    24 VDC
In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable.
All specifications are subject to change without notice.
