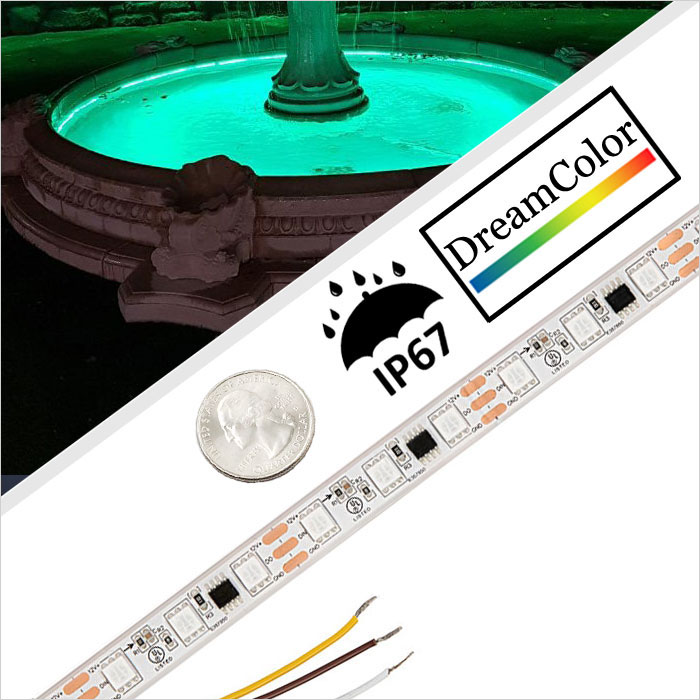

DreamColor series Digital RGB Strip Light has WS2811 IC chip technology to individually address each 3 RGB LED segment. Use the compatible Magic-LED Bluetooth Controller (sold separately) and Magic-LED app to operate from the convenience of a smartphone. Select from thousands of solid colors and 200 preset color changing modes. Customize brightness as well as color-changing speed. This tape light requires 12V power, is cuttable every 3 LEDs, and has 3M™ adhesive backing for quick mounting. Water resistant construction allows strip to be applied to a wide range of applications.

Controller requires Magic-LED app and compatible Bluetooth equipped device with at least iOS 8.0 or Android 4.4 installed. Magic-LED app compatible with both Apple and Android smartphones.

Product Details:

1. Also available in IP20 non-waterproof version
2. Also available in single addressable version
3. 12 VDC input
4. 3 LED/segment
5. Max Run: 16.4ft (5m)
6. Segment Length: 1.97in (50mm)
7. Density: 18 LEDs/ft (60 LEDs/m)
8. Strip Width: 12mm (0.47in)
9. 0-100% dimmable
10. Connection: pigtail
11. IP67 rated for wet conditions
12. 36000 hours L70 lifespan
13. UL Listed
14. 5 year warranty

Warranties & Certifications

DreamColor Series:
DreamColor series is our most advanced dynamic color changing strip line with popular color chasing digital RGB LED capabilities. Various IC chip types available to accommodate any digital RGB system with 1-3 addressable LED segments to dial in resolution needs.

Available in standard and high density, up to 18 LEDs/ft
Single addressable LED chips for highest resolution available
Hundreds of color chasing and sequencing patterns with compatible controllers
RF remote control and bluetooth controllers available
IP20 for indoor applications; IP67 for waterproof

TECHNICAL DETAILS

**All specifications are subject to change without notice.

Other Flex Digital LED Strip Lights

Incorrect Use:

Packaing Diagram

Use of environmental conditions
1). LED strips installation must be operated by professionals.
2). For avoiding LED get vulcanized, LED strip should be installed in the environment where does not has oil and corrosive substances. Such as these substances which contain Sulphur、Bromine、Iodine and Chlorine. Some other chemical elements which will cause Aromatic hydrocarbons releasing(such as: methylbenzene、xylene、methyl acetoacetate Ethyl acetate etc.).The environment in which includes strong acid and strong base.
3). For cutting LED strip operation, it is necessary to use the standard accessories provided by smartbrightLEDs (e.g. DC wire, end-cap, front-cap, adhesive, etc.), and according to the correct cutting and connecting method for the installation.
4). LED strip cannot be installed in some areas where water hazard might be formed, such as the surface of pits and ditches. And similar places in which rain and water may be accumulated easily.
5). Please do not strongly pull、crash the LED strips during  installation  process. And avoid squeezing and scratching LED strips with sharp objects.
6). During the warranty period, only defective products are acceptable to be replaced by the factory.  Factory is not responsible for other expenses because of replacement，such as transportation fee, installation fee, etc.

Cautions 1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED. 2. For better lighting effect of the product, each 5 meters strip must connect the main power source. 3. Must guarantee that each power source (GND) must be connected. 4. Should not be curving in the diameter 60mm following radian, please do not rebate, in order to avoid damage lamp bead or break. 5. Please follow the user manual for installation. 6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety. 7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED. 8. Installs as far as possible the product in the appropriate environment. 9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage.

** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
