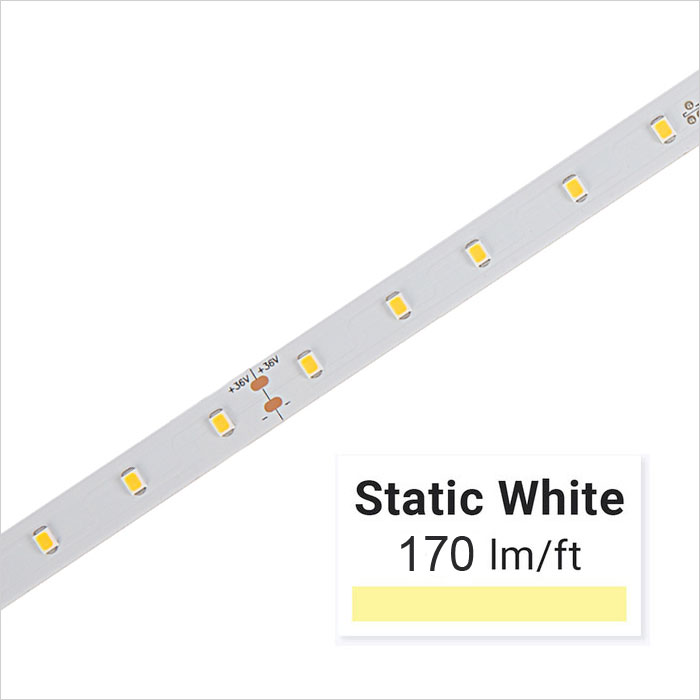

Higher voltage LED Strip Lights can illuminate a longer distance without the worry of voltage drop. As a part of the Highlight series, this tape light uses pro-grade 2835 LED chips to create a powerful yet efficient line of light. High CRI of 90+ renders truer, vivid colors. The low-profile and flexible construction is a versatile solution for a wide range of indoor spaces. Use as accent lighting in coves and architectural features, or as task light for under-cabinets, work benches, and more.

Product Details:

• Strip Width: 10mm
• 0-100% dimmable
• IP20 rated for indoor applications
• 36 VDC
• Cuttable segment length: 6.56 in. (166.7 mm)
• Density: 18 LEDs/ft

High CRI 90 Series
CRI (color rendering index) is a measurement of how accurately a light source illuminates objects' true colors. Our LED lights have CRI95+, indicating that our LED strips are able to produce white light that approximates halogen or incandescent lighting and natural daylight.

Available Colors CCTs

Warranties & Certifications

Application & Use
SmartBrightLEDs White Series LED strip lights are installed in a wide variety of applications including:
TV backlighting, Linear lighting, Cove lighting, Display / jewelry case lighting, Bar and restaurant accent lighting, Above cabinet lighting, Under counter lighting, Hotel lobbies, Cove lighting

Specifications
Brightness:     170 lm/ft (558 lm/m)
CRI:     90+
Certifications/Compliance:    CE, UL Listed
Current Draw Per Foot:    51mA
Dimmable:    Yes
Efficacy:    93 lm/w
Environmental Rating:     Non-Weatherproof
Finish:    White
Input Connection Type:    Pigtail
LED Beam Angle:     120 degree
LED Density:    18 LEDs/ft (60 LEDs/m)
LED Type:      2835 SMD
LEDs per Segment:    10
Max Run:     Up to 98.4ft (30m)
Minimum Cut Length:    166.7mm (6.56in)
Operating Temperature:    -20~+45 °C (-4~+113 °F)
Operating Voltage:     36 VDC
Rated Life (L70):    50000 Hours
Strip Width:    10mm (0.39in)
Type:    Flexible Light Strips
Wattage per Foot:    1.8 W/ft (6 W/m)
Wire Length:    19in (48.3cm)
All specifications are subject to change without notice.

Incorrect Use:

Packaing Diagram

Use of environmental conditions
1). LED strips installation must be operated by professionals.
2). For avoiding LED get vulcanized, LED strip should be installed in the environment where does not has oil and corrosive substances. Such as these substances which contain Sulphur、Bromine、Iodine and Chlorine. Some other chemical elements which will cause Aromatic hydrocarbons releasing(such as: methylbenzene、xylene、methyl acetoacetate Ethyl acetate etc.).The environment in which includes strong acid and strong base.
3). For cutting LED strip operation, it is necessary to use the standard accessories provided by smartbrightLEDs (e.g. DC wire, end-cap, front-cap, adhesive, etc.), and according to the correct cutting and connecting method for the installation.
4). LED strip cannot be installed in some areas where water hazard might be formed, such as the surface of pits and ditches. And similar places in which rain and water may be accumulated easily.
5). Please do not strongly pull、crash the LED strips during  installation  process. And avoid squeezing and scratching LED strips with sharp objects.
6). During the warranty period, only defective products are acceptable to be replaced by the factory.  Factory is not responsible for other expenses because of replacement，such as transportation fee, installation fee, etc.


Cautions 1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED. 2. For better lighting effect of the product, each 5 meters strip must connect the main power source. 3. Must guarantee that each power source (GND) must be connected. 4. Should not be curving in the diameter 60mm following radian, please do not rebate, in order to avoid damage lamp bead or break. 5. Please follow the user manual for installation. 6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety. 7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED. 8. Installs as far as possible the product in the appropriate environment. 9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage.

** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
