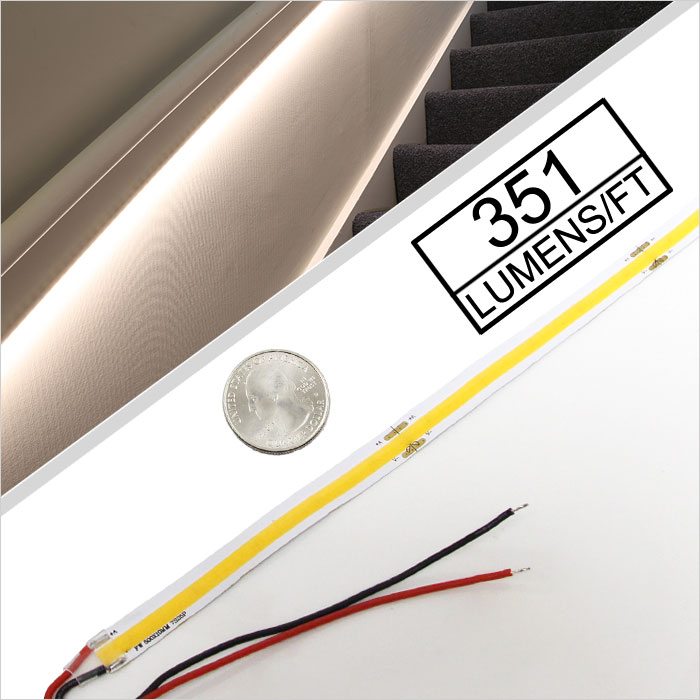

5m White Flexible COB LED Strip Light - High CRI - 24V - IP20
The seamless light emitted LED COB Strip is ideal for illuminating reflective surfaces such as granite countertops, tile floors, and jewelry cases. Chip-on-board LED technology combined with wide angle optics eliminate visible hot spots for a totally smooth light. And with high, 94+ CRI, this tape light is a solution for places where quality color rendering is needed, such as display cases and kitchen counters. Measuring only 8mm wide, the strip light is fully dimmable, cuttable in 2.46" segments, 3M™ adhesive-backed, and available in several different white temperatures.
Features:
- Also available in single color options
- Also available in 12V version
- 94+ CRI rating ensures vibrant, natural-looking color tones;
- High quality FPC, authentic 3M tape;
- 0-100% dimmable;
- Max run: 10m;
- 24 VDC input;
- IP20 rated for dry conditions;
- 30000 hours L70 lifespan;
- UL Listed;
- 5 year warranty;
A new type of FOB strip

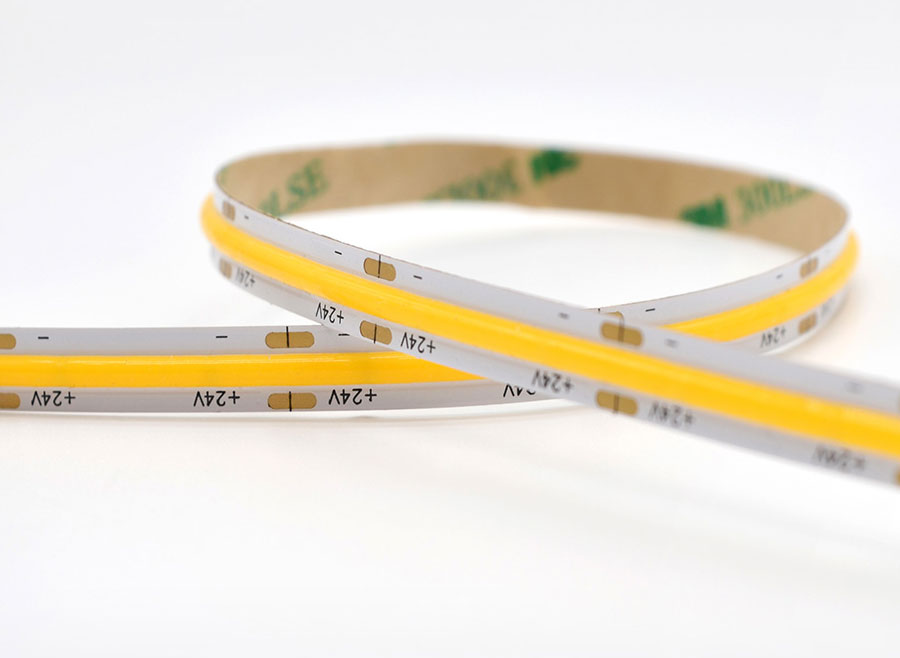

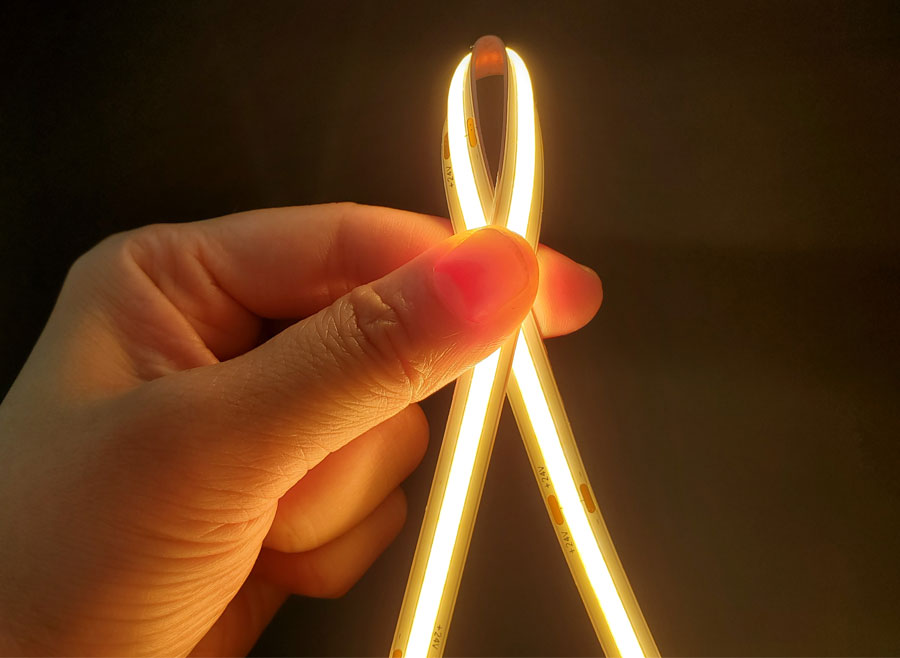

FOB strip means Flexible COB Strip, that's a new design type of LED strip products. As now the LED Strip is by SMD LED+ FPC, so there must with some light dot or spot. Now this FOB Strip is flip chip design covered with phosphor directly, so the color is even and without any light spot. For example, customers usually use the high density LED Strip as such as 2216, 2210 LED Strip. But even with 240LEDs per meter, you will still found light dot when the profile is thin. Like this:
High CRI 90 Series
CRI (color rendering index) is a measurement of how accurately a light source illuminates objects' true colors. Our LED lights have CRI95+, indicating that our LED strips are able to produce white light that approximates halogen or incandescent lighting and natural daylight.

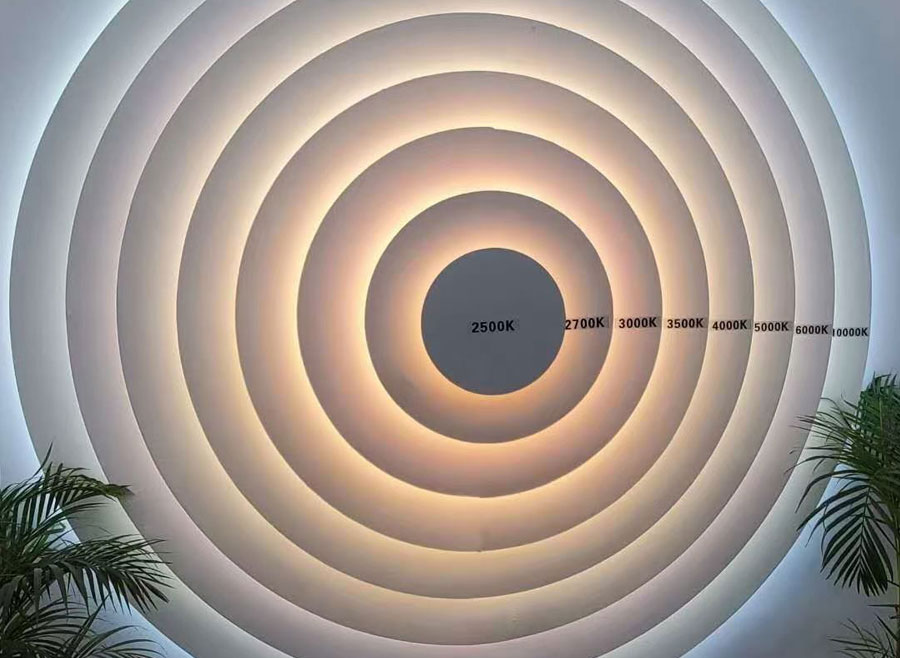

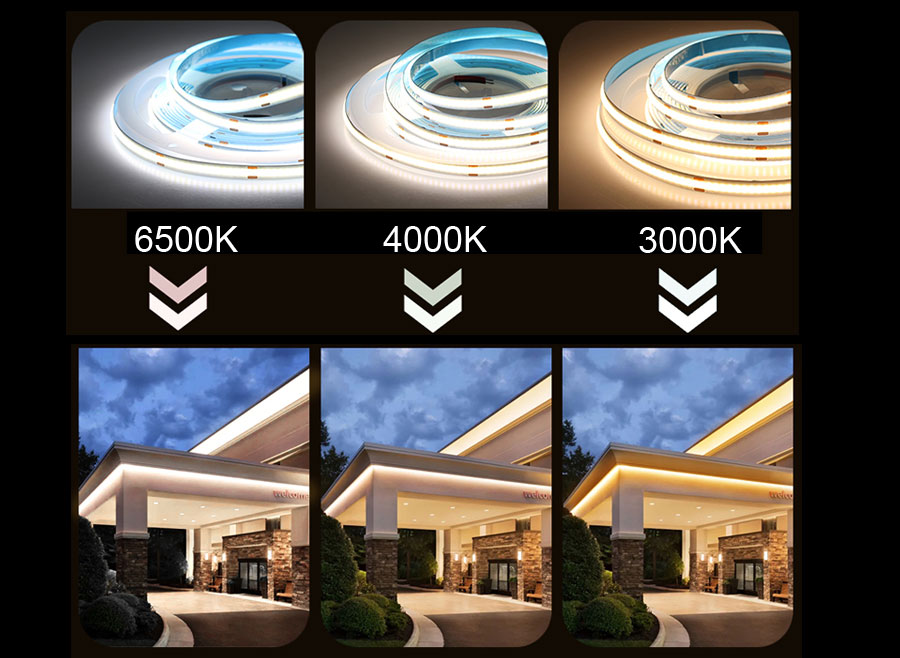

Available Colors CCTs
COB series LED Strip Lights Production Process

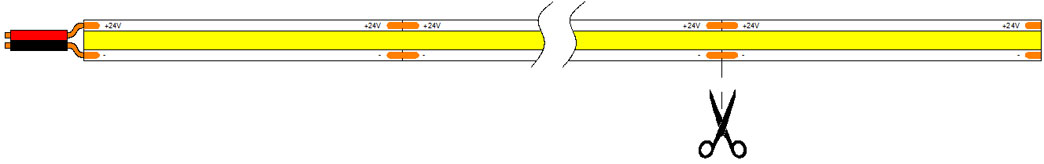

Cutting and Soldering Procedure:
Cutting:
- Cutting along the cutting line marked on FPC,cutting allowable deviation±0.5MM.
Soldering:
- Control the soldering temperature under 360℃.
- Finish soldering within 3 seconds.
- Solder tip do not touch the yellow silicone coating.
Warranties & Certifications
Application & Use
SmartBrightLEDs White Series LED strip lights are installed in a wide variety of applications including:
TV backlighting, Linear lighting, Cove lighting, Display / jewelry case lighting, Bar and restaurant accent lighting, Above cabinet lighting, Under counter lighting, Hotel lobbies, Cove lighting
TECHNICAL DETAILS
LED Beam Angle | 180° |
Connection Type | Pigtail |
Current Draw | 2.08A (2080mA) |
Current Draw Per Foot | 127mA |
CRI | 94+ |
IP Rating | Non-Weatherproof |
LED Density | 156 LEDs/ft. |
LED Quantity | 2560 LEDs |
LED Type | COB (chip-on-board) |
Minimum Cut Length | 62.5mm (2.46in) |
Rated Lifespan | 50,000 hours |
Length | 16.4ft (5m) |
Dimmable | Yes (requires controller) |
Special Features | High CRI |
Strip Width | 8mm (0.31in) |
Wattage Total | 50 Watts |
Voltage | 24 VDC |
Wattage per Foot | 3.1 W/ft (10.2 W/m) |
Wire Length | 508mm (20in) |
Standards And Certifications | RoHS Compliant, UL Listed |
**All specifications are subject to change without notice.
Download COB Series Single Color,CCT and RGB Specification Sheet
Incorrect Use:
Packaing Diagram
Use of environmental conditions
1). LED strips installation must be operated by professionals.
2). For avoiding LED get vulcanized, LED strip should be installed in the environment where does not has oil and corrosive substances. Such as these substances which contain Sulphur、Bromine、Iodine and Chlorine. Some other chemical elements which will cause Aromatic hydrocarbons releasing(such as: methylbenzene、xylene、methyl acetoacetate Ethyl acetate etc.).The environment in which includes strong acid and strong base.
3). For cutting LED strip operation, it is necessary to use the standard accessories provided by smartbrightLEDs (e.g. DC wire, end-cap, front-cap, adhesive, etc.), and according to the correct cutting and connecting method for the installation.
4). LED strip cannot be installed in some areas where water hazard might be formed, such as the surface of pits and ditches. And similar places in which rain and water may be accumulated easily.
5). Please do not strongly pull、crash the LED strips during installation process. And avoid squeezing and scratching LED strips with sharp objects.
6). During the warranty period, only defective products are acceptable to be replaced by the factory. Factory is not responsible for other expenses because of replacement,such as transportation fee, installation fee, etc.
Cautions 1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED. 2. For better lighting effect of the product, each 5 meters strip must connect the main power source. 3. Must guarantee that each power source (GND) must be connected. 4. Should not be curving in the diameter 60mm following radian, please do not rebate, in order to avoid damage lamp bead or break. 5. Please follow the user manual for installation. 6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety. 7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED. 8. Installs as far as possible the product in the appropriate environment. 9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage. |
** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
